Product Description:

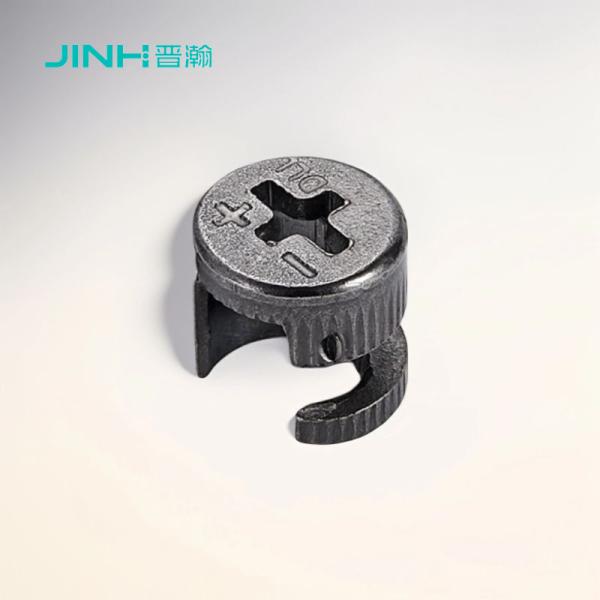

Introducing the JINHAN Minifix Cam Lock (Model JH-1046), a premium solution for secure and aesthetically pleasing furniture assembly. Crafted from cold rolled carbon steel and finished with a sleek black nickel plating, this cam lock offers both durability and style, making it an ideal choice for a wide range of furniture applications.
Key Features
High-Quality Material: Unlike many competitors that use zinc alloy, our minifix cam lock is made from cold rolled carbon steel, providing superior strength and longevity.
Hidden Installation: The cam lock features a hidden installation design, ensuring a clean and seamless look for your furniture.
Enhanced Grip: Both the inner and outer surfaces of the eccentric wheel are equipped with vertical ribs, increasing friction for a more secure and reliable connection.
Precise Engineering: With a drilling depth of 13.5mm, this cam lock ensures a perfect fit for your furniture panels.
Dimensions: The lock measures 12mm in diameter and 13.5mm in height, making it versatile for various furniture types.
Applications
The JINHAN Minifix Cam Lock (Model JH-1046) is designed for use in a multitude of furniture applications, including but not limited to:
Cabinets: Securely fasten cabinet doors and drawers.
Wardrobes: Ensure stable and secure assembly of wardrobe components.
Storage Units: Ideal for assembling shelves, racks, and other storage solutions.
This cam lock is perfect for both professional furniture manufacturers and DIY enthusiasts seeking a reliable and stylish method for assembling furniture.
Elevate your furniture assembly with the JINHAN Minifix Cam Lock (Model JH-1046)—where strength, style, and functionality converge.
JINHAN FURNITURE CONNECTOR E-CATALOGUE .pdf
Product Details:
Technical Parameters:
| Specification | Value |
| Application | Closet Systems: Cam connectors are employed in the assembly of closet organizers and shelving systems. They provide a stable connection between panels and shelves, accommodating various configurations and layouts.and more. |
| Torque | Up To 12N |
| Salt Spray Test | 24H/48H |
| Height | 13.5mm |
| Finish | Black Nickel Plated |
| Panel supported | 15-18mm Thickness |
| Material | Cold Rolled Steel |
| Assemble | Easy |
| Product Type | Furniture Hardware |
| Usage | Locking And Securing Panel Furniture |
| Product Name | Furniture Cam Connector |
Packing Method:
3000/4000/5000pcs per carton or as per your requirements.
